Premium Heavy-Duty Portable Loading Ramp for Warehouses, Truck Docks & Forklift Operations (Copy) (Copy) (Copy)

In stock

Overall Dimensions

  • Length: 37.1 ft (444.9 in)
  • Width: 6.9 ft (82.7 in)
  • Height: 3.6 ft (43.3 in)

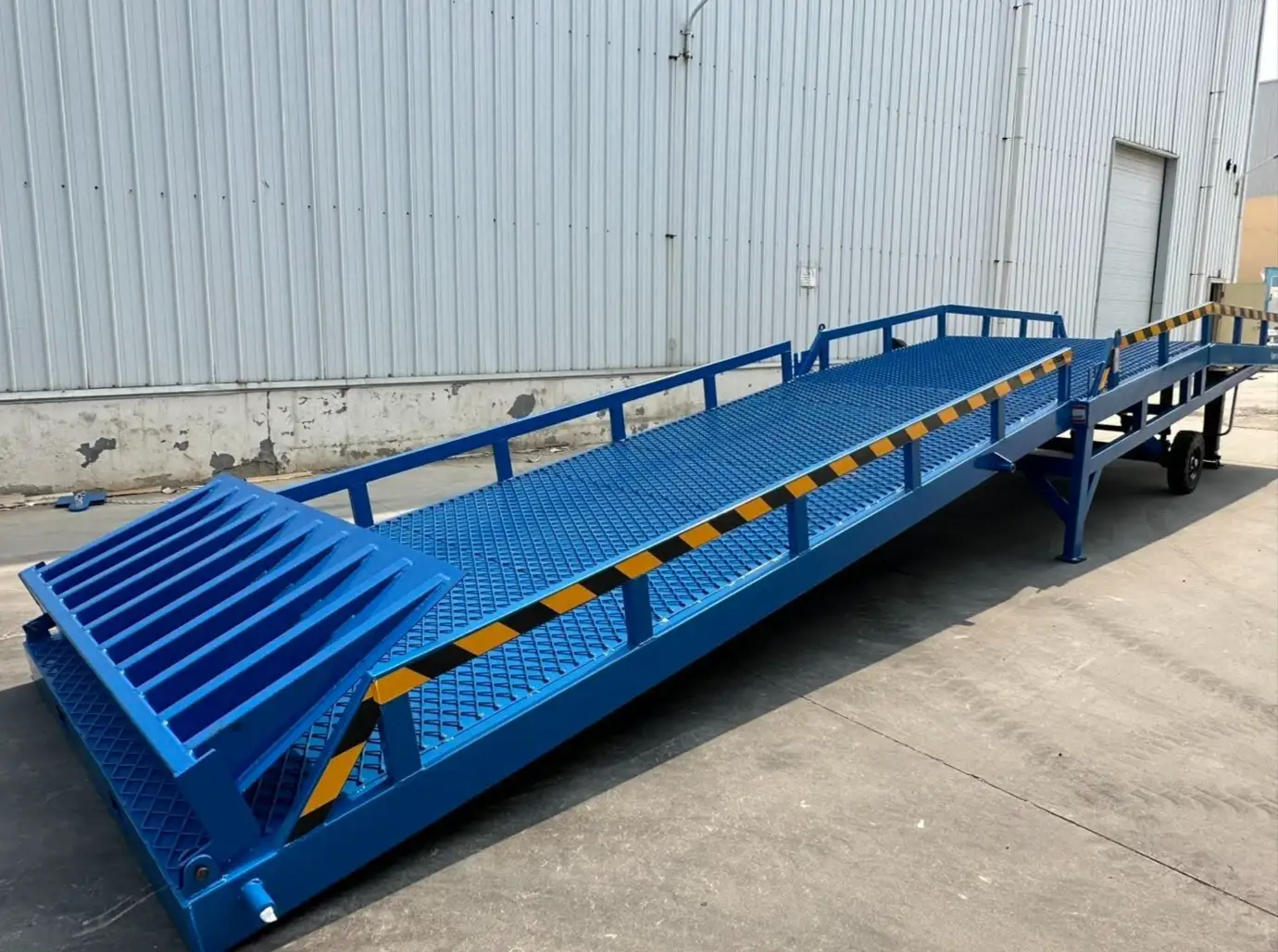

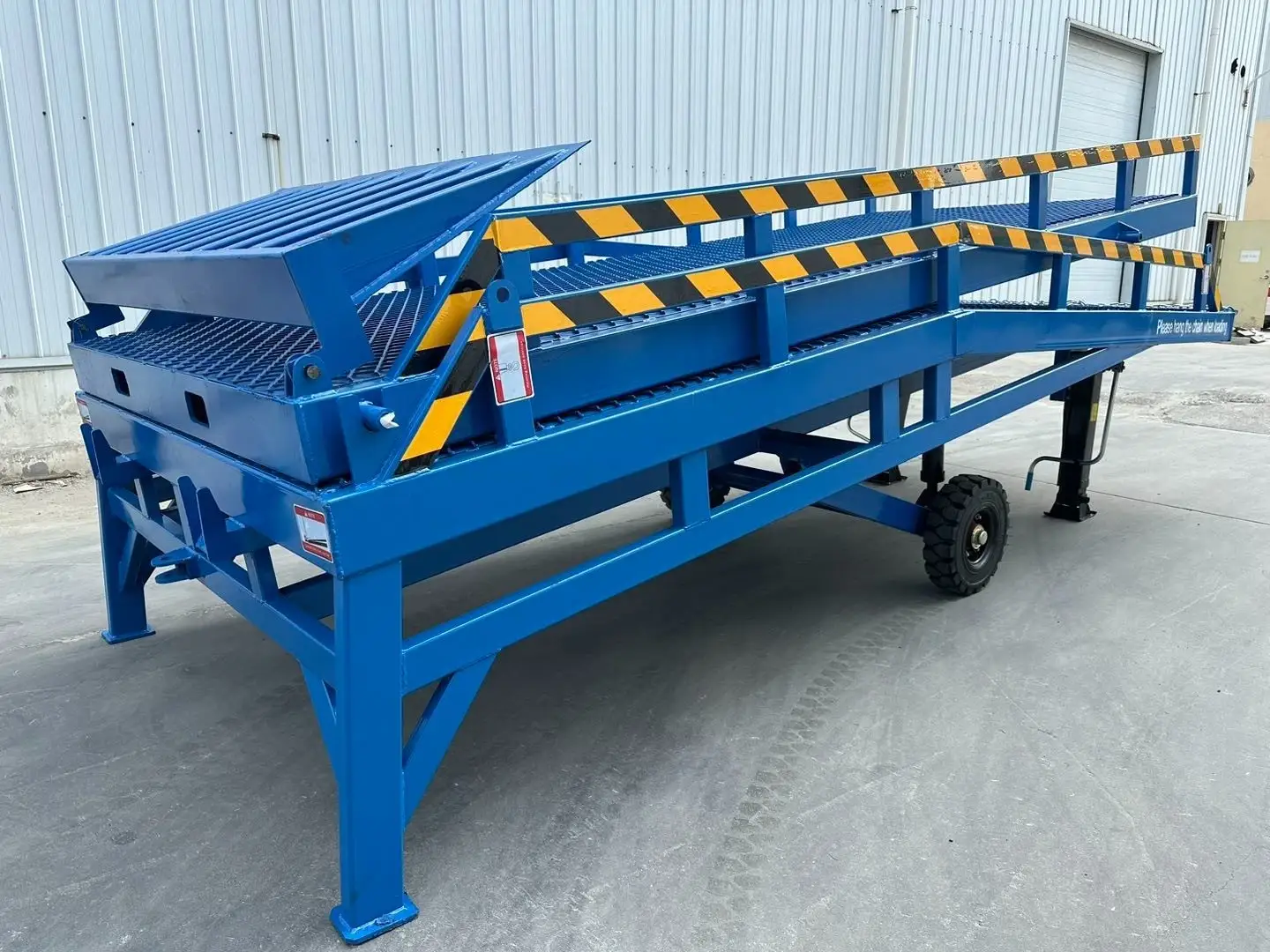

38-Foot Modular Yard Ramp – 20,000 lb Capacity (Model HL-YD-10T)



The 38-Foot Modular Yard Ramp (Model HL-YD-10T) is a premium heavy-duty, portable loading solution designed for demanding warehouse, dock, and forklift operations. Built to handle up to 20,000 lbs (10 tons), this ramp delivers strength, stability, and flexibility where permanent docks aren’t available. Its modular foldable design allows for quick setup, easy relocation, and efficient space utilization. The long 23.5-ft slope ensures smooth, safe forklift transitions, while the spacious upper platform improves maneuverability. A reinforced steel plate deck with expanded mesh provides superior traction and durability in all working conditions. Height adjustment is simple and precise using the manual hydraulic pump and dual hand-crank legs. Heavy-duty structural tubing and integrated guardrails enhance operator safety and long-term reliability. Solid 600-9 tires allow effortless towing and positioning across yard surfaces. The ramp is shot-blasted and anti-corrosion treated, ensuring excellent resistance to wear and rust. Finished in industrial medium blue, it delivers both performance and professional appearance. Ideal for warehouses, logistics yards, factories, and distribution centers. A complete solution, including drawbar, tire block, and trailer chain, ready for immediate use.



Platform & Slope Configuration

– Slope Length: 23.5 ft (281.5 in)

– Upper Platform Length: 9.8 ft (118.1 in)

– Rear Pedal Section: 2.46 ft (29.5 in)

– Front Pedal Section: 1.31 ft (15.7 in)

– Internal Usable Width: 6.56 ft (78.7 in)

– Deck: 0.157 in steel plate + 0.315 in expanded steel mesh



Load Rating

– 20,000 lbs (10 Ton)



Power & Adjustment

– Manual hydraulic pump

– Two hand-crank legs (15.75 in stroke)

– Height range: 43.3–70.9 in



Structural Construction

– Main Frame: 6.30×3.15×0.157 in tubes + 4.72×2.36×0.157 in tubes

– Sub-Frame: 3.94×1.97×0.118 in tubes

– Guardrails: 7.87 in height



Hydraulics

– 3.15 in bore cylinders, 1.77 in rods

– 32 MPa high-pressure line



Mobility

– 600-9 solid tires (approx. 23.6 in diameter)



Finish & Protection

– Medium blue

– Shot-blasted, rust removal, anti-corrosion coating



Included Accessories

– Drawbar, tire block, trailer chain
